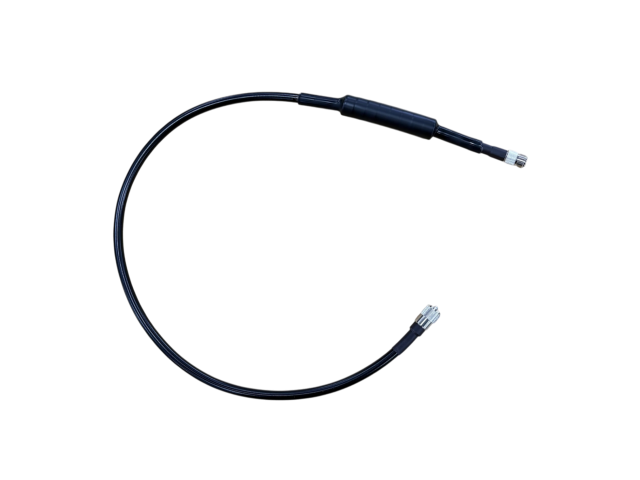

JS-A-RWS-213X8(High-Power HF Common Mode Choke)

Model: A-RWS-213X8

Radio Wave Stabilizer (High-Power Common Mode Choke)

The A-RWS-213X8 is a high-performance inline RF choke designed to suppress unwanted common-mode currents typically generated in end-fed and high-power antenna systems.



Key Features
		Effectively reduces or eliminates RF interference (RFI) traveling along the coaxial feedline
		Significantly improves antenna radiation efficiency and pattern stability
		Minimizes RF feedback into radio equipment, especially under high-power operation
		Multi-ferrite core design provides enhanced common-mode suppression across HF bands
		Heavy-duty construction suitable for base station and mobile installations



Technical Specifications
		Core Type: 8 × High-performance Ferrite Beads (optimized for 1–60 MHz HF range)
		Frequency Range: 1 MHz – 60 MHz
		Cable Type: RG-213/U coaxial cable
		Cable Length: 1 meter
  	Connector Options:
		MJ-MP (UHF Male to UHF Male)
		NJ-NP (N Male to N Male)
		Protection: Adhesive-lined heat shrink tubing (weather-resistant, outdoor ready)



Power Rating
		1000W PEP (HF bands)
		600W Continuous (Digital modes)



Installation
		Install at the antenna feed point for maximum suppression performance
		Can also be installed near the antenna tuner or directly behind the transceiver



Application
		End-fed antennas
		High-power HF base station systems
		Mobile HF installations
		Portable and field operation setups
