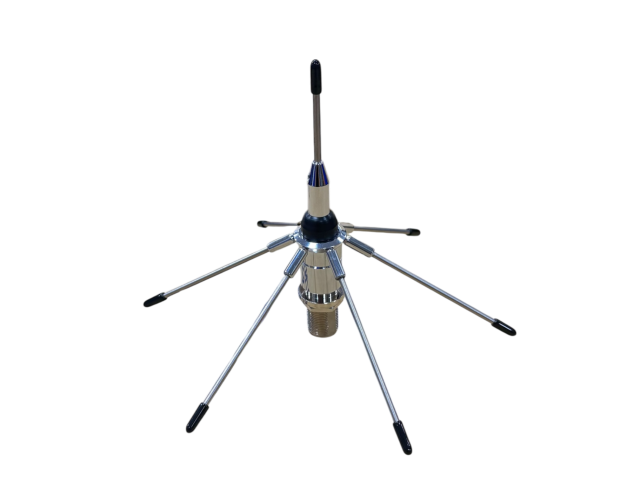

The GP-6N is designed for Sub-GHz wireless applications, featuring a wideband range of 860–960 MHz, covering both 868 MHz (EU) and 915 MHz (US / Taiwan) bands for global deployment.
Built with a true 1/4 wave ground plane design, it eliminates loading coil losses and delivers superior radiation efficiency and stable performance.

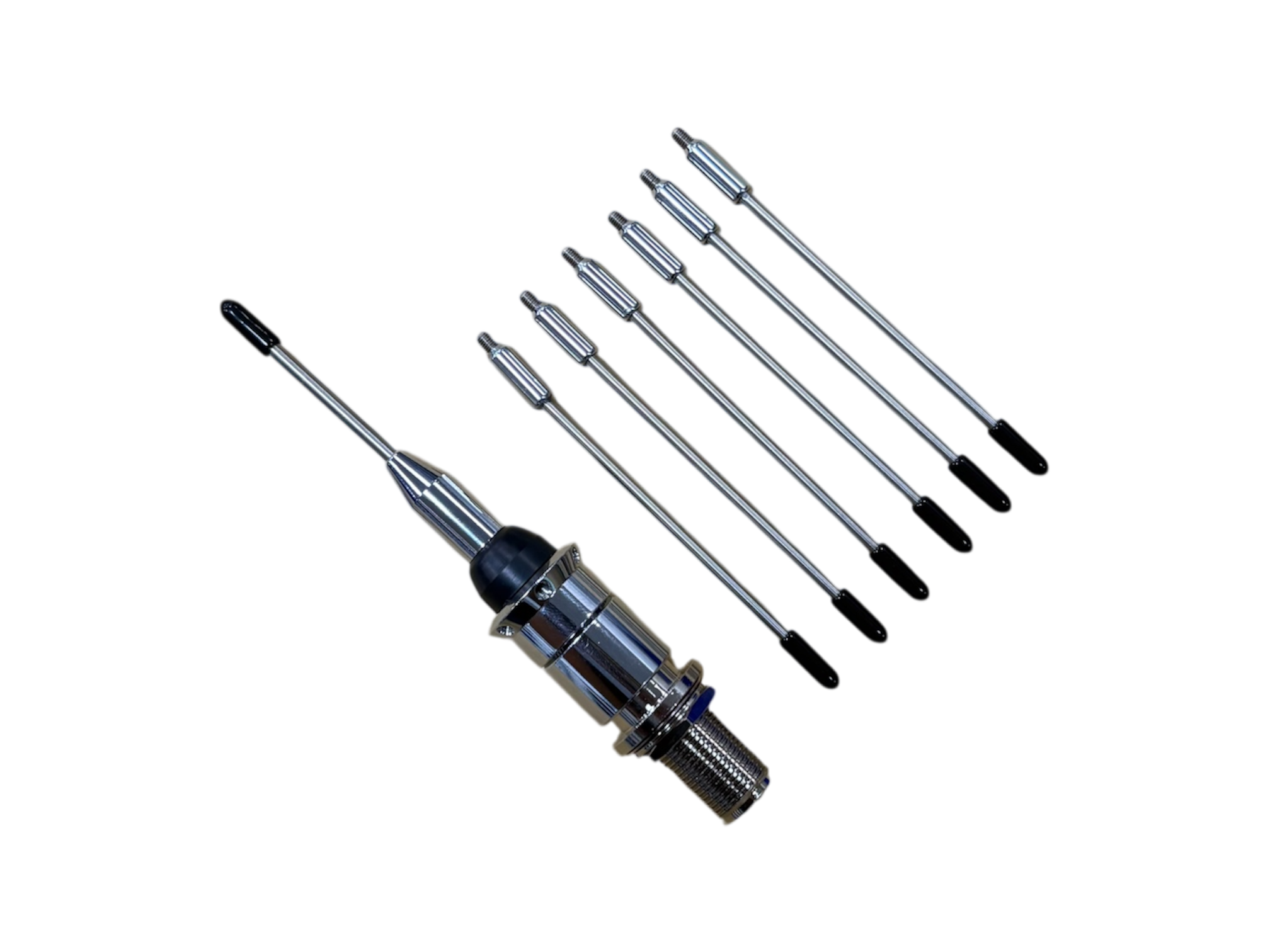

Its 6-radial ground plane structure enhances impedance matching and provides a more uniform omni-directional radiation pattern, reducing dead zones and improving coverage.
Equipped with a durable extended N female connector, it is ideal for LoRa gateways, IoT base stations, and outdoor installations.
Model:GN-6N
Frequency:860-960MHz
Gain:2-3dbi
VSWR:<1.5
Power:100W
Impedance:50Ω
Weight:0.148kg
Length:18.5x15cm
Connector:N
